Descrizione

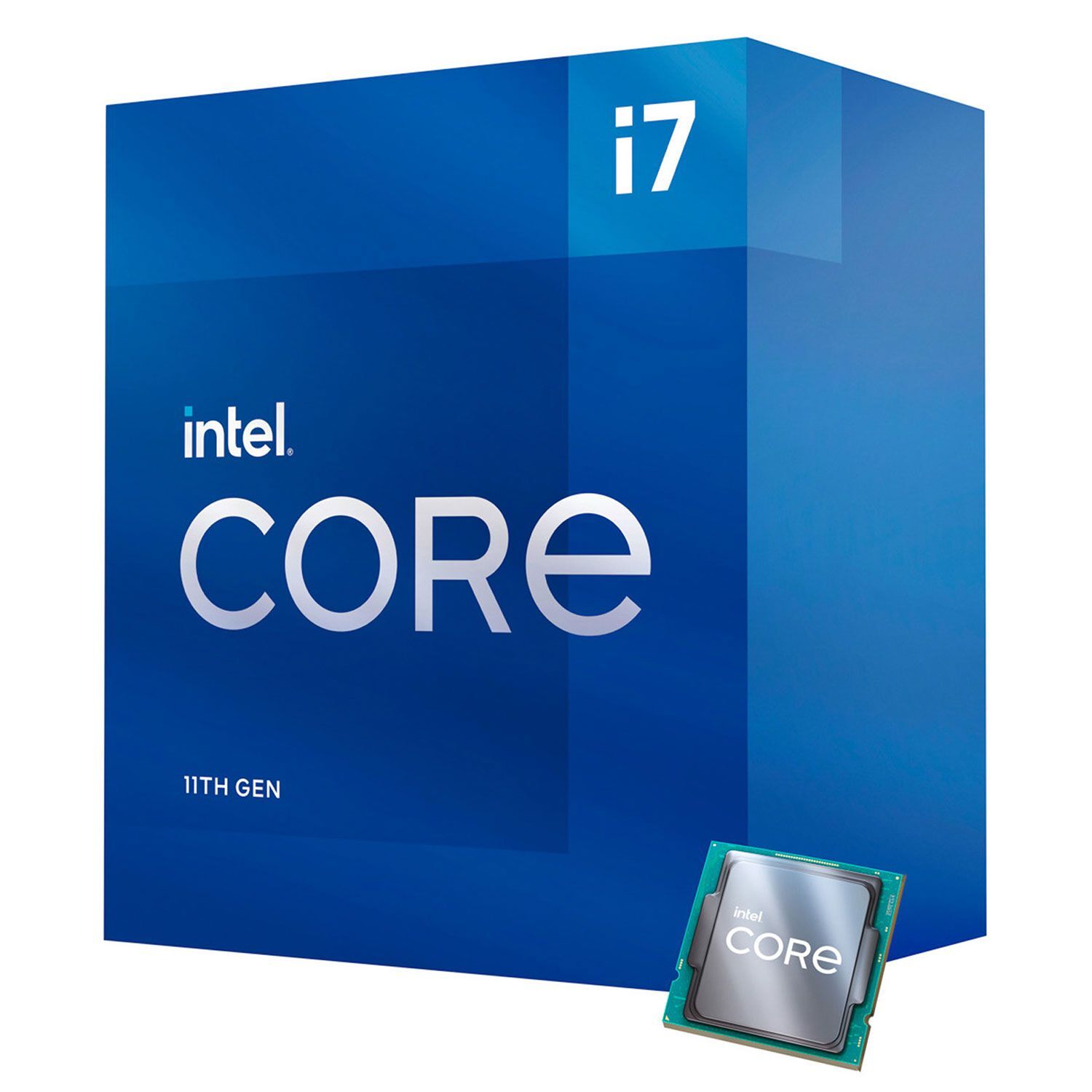

Power up your productivity, gaming, and content creation experiences by installing the Intel Core i7-11700 2.5 GHz Eight-Core LGA 1200 Processor into your computer system. Built using a 14nm process, this 11th generation desktop processor features a base clock frequency of 2.5 GHz and a 4.9 GHz Turbo Boost Max 3.0 frequency with 16MB of cache, eight cores, and sixteen threads for fast and reliable performance. The Core i7-11700 also includes support for PCI Express 4.0 and dual-channel DDR4 memory at 3200 MHz to help run and multitask a variety of demanding applications and games using technologies such as built-in AI acceleration. Performance can be further enhanced by installing Intel Optane memory to cache frequently accessed data.
The i7-11700 features integrated Intel UHD 750 Graphics driven by the powerful Xe architecture.
General
CPU Model |
Intel Core i7-11700 |
CPU Socket |
LGA 1200 |
Manufacturing Process |
14 nm |
Maximum CPU Configuration |
1S |
Maximum Number of PCIe Lanes |
20 (Revision 4.0) |
Unlocked |
No |
Performance
Number of Cores |
8 |
Number of Threads |
16 |
Base Clock Speed |
2.5 GHz |
Maximum Boost Speed |
4.9 GHz |
L3 Cache |
16 MB |
Memory Support
Maximum Capacity |
128 GB |
Memory Support |
DDR4 2933, 3200 MHz |
ECC Memory |
No |
Channel Architecture |
Dual Channel |
Maximum Memory Bandwidth |
50 GB/s |
Power
Thermal Design Power (TDP) |
65 W |
Included Thermal Solution |
PCG 2019C |
Maximum Temperature |
212°F / 100°C |
Thermal Monitoring Technologies |
Yes |
Technology
AES Support |
Yes |
Extension |
AVX 2.0, AVX-512, SSE 4.1/4.2 |
Instruction Set |
64-Bit |
Virtualization |
Yes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT) |
Integrated Graphics
Graphics Chipset |
Intel UHD Graphics 750 |
Maximum Resolution Support |
5120 x 3200 at 60 Hz |
Supported APIs |
DirectX: 12
OpenGL: 4.5 |
Number of Displays |
2 |
Maximum Shared Video Memory |
64 GB |
Output Support |
DisplayPort, HDMI |
Base Clock Speed |
350 MHz |
Maximum Boost Speed |
1.3 GHz |
Intel
DMI |
DMI3 (8 GT/s) |
Optane Memory Support |
Yes |
vPro Support |
Yes |
Performance Technologies |
Deep Learning Boost, Gaussian and Neural Accelerator 2.0, Hyper-Threading, SpeedStep, Stable Image Platform Program, Turbo Boost 2.0, Turbo Boost Max 3.0 |
Security Technologies |
BIOS Guard, Device Protection with Boot Guard, Execute Disable Bit, Identity Protection, OS Guard, Secure Key |
Video Technologies |
Clear Video, Clear Video HD, InTru 3D, Quick Sync Video |
