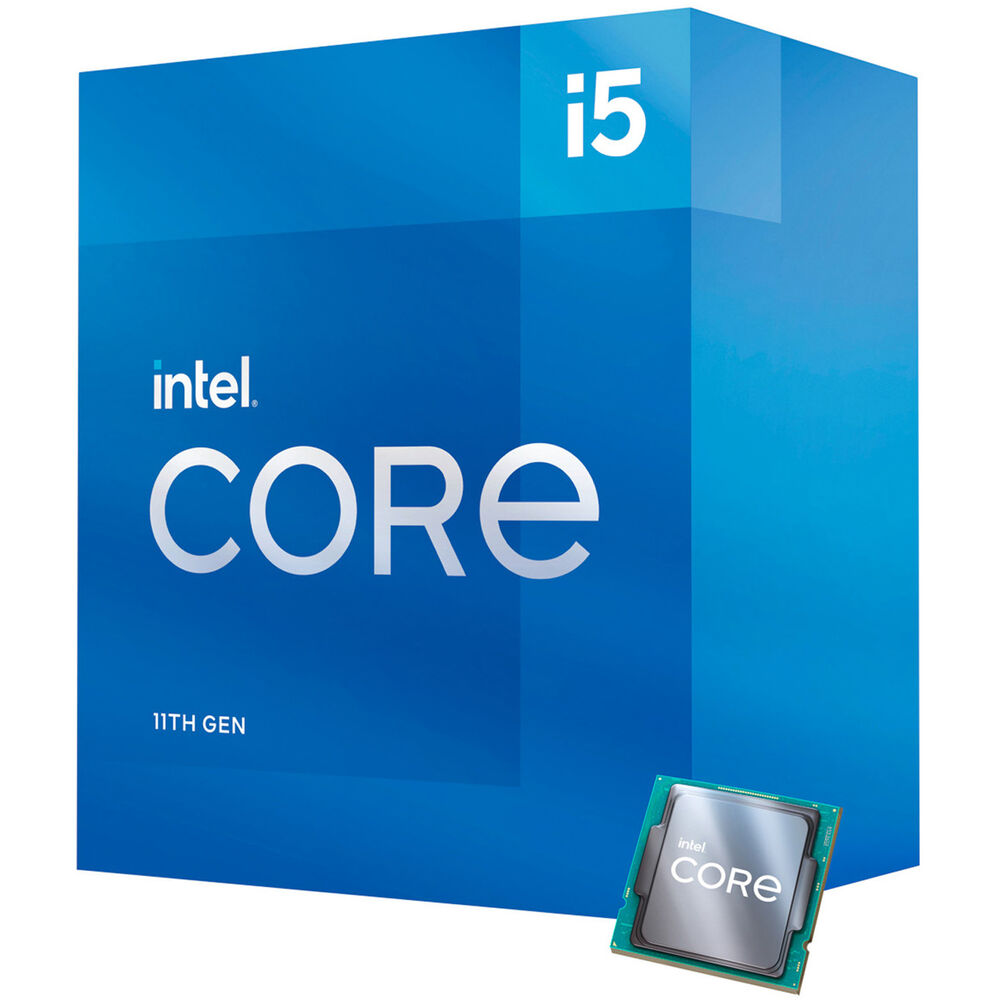

Power up your productivity, gaming, and content creation experiences by installing the Intel Core i5-11400 2.6 GHz Six-Core LGA 1200 Processor into your computer system. Built using a 14nm process, this 11th generation desktop processor features a base clock frequency of 2.6 GHz and a 4.4 GHz turbo frequency with 12MB of cache, six cores, and twelve threads for fast and reliable performance. The Core i5-11400 also includes support for PCI Express 4.0 and dual-channel DDR4 memory at 3200 MHz to help run and multitask a variety of demanding applications and games using technologies such as built-in AI acceleration. Performance can be further enhanced by installing Intel Optane memory to cache frequently accessed data.
The Core i5-11400 features integrated Intel UHD 730 Graphics driven by the powerful Xe architecture. A thermal solution is included to help maintain optimal temperatures
PCIe 4.0
This processor supports up to 20 PCIe 4.0 lanes, delivering exceptional data throughput with compatible devices.
AI Acceleration
Intel Deep Learning Boost (VNNI) technologies help to enhance the performance of deep learning workloads.
Thunderbolt 4 & USB4
With Thunderbolt 4 technology, this processor supports data transfer speeds of up to 40 Gb/s with compatible devices and you can connect up to two 4K monitors simultaneously. USB4 technology supports a 20 Gb/s throughput with compatible devices and up to one 4K monitor.
Intel Iris Xe Graphics
The integrated graphics deliver fast, rich 3D performance for high-quality visuals.
General
CPU Model |
Intel Core i5-11400 |
CPU Socket |
LGA 1200 |
Manufacturing Process |
14 nm |
Maximum CPU Configuration |
1S |
Maximum Number of PCIe Lanes |
20 (Revision 4.0) |
Unlocked |
No |
Performance
Number of Cores |
6 |
Number of Threads |
12 |
Base Clock Speed |
2.6 GHz |
Maximum Boost Speed |
4.4 GHz |
L3 Cache |
12 MB |
Memory Support
Maximum Capacity |
128 GB |
Memory Support |
DDR4 2933, 3200 MHz |
ECC Memory |
No |
Channel Architecture |
Dual Channel |
Maximum Memory Bandwidth |
50 GB/s |
Power
Thermal Design Power (TDP) |
65 W |
Included Thermal Solution |
PCG 2019C |
Maximum Temperature |
212°F / 100°C |
Thermal Monitoring Technologies |
Yes |
Technology
AES Support |
Yes |
Extension |
AVX 2.0, AVX-512, SSE 4.1/4.2 |
Instruction Set |
64-Bit |
Virtualization |
Yes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT) |
Integrated Graphics
Graphics Chipset |
Intel UHD Graphics 730 |
Maximum Resolution Support |
5120 x 3200 at 60 Hz |
Supported APIs |
DirectX: 12
OpenGL: 4.5 |
Number of Displays |
2 |
Maximum Shared Video Memory |
64 GB |
Output Support |
DisplayPort, HDMI |
Base Clock Speed |
350 MHz |
Maximum Boost Speed |
1.3 GHz |
Intel
DMI |
DMI3 (8 GT/s) |
Optane Memory Support |
Yes |
vPro Support |
No |
Performance Technologies |
Deep Learning Boost, Gaussian and Neural Accelerator 2.0, Hyper-Threading, SpeedStep, Turbo Boost 2.0 |
Security Technologies |
BIOS Guard, Device Protection with Boot Guard, Execute Disable Bit, Identity Protection, OS Guard, Secure Key |
Video Technologies |
Clear Video, Clear Video HD, InTru 3D, Quick Sync Video |
