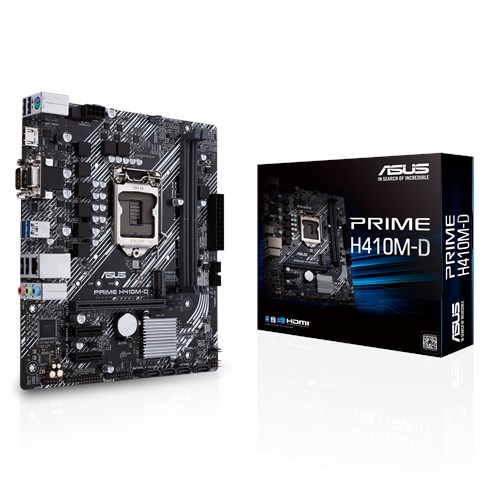

MB ASUS PRIME H410M-D (1200)

SKU: 90MB13H0-M0EAY0

Scheda madre Intel® H410 (LGA 1200) microh-ATX con supporto M.2, DDR4 2933MHz, HDMI, D-Sub, porte USB 3.2 Gen 1, SATA 6 Gbps, porta COM, porta LPT

81,00

2 disponibili

Prezzo del prodotto
Totale opzioni aggiuntive:
Totale ordine:
Compara

Descrizione

Scheda madre Intel® H410 (LGA 1200) microh-ATX con supporto M.2, DDR4 2933MHz, HDMI, D-Sub, porte USB 3.2 Gen 1, SATA 6 Gbps, porta COM, porta LPT

  • Socket Intel® LGA 1200: Pronto per i processori Intel® Core™ della 10a generazione
  • 5X Protection III: Protezioni hardware multiple per una protezione a tutto tondo
  • ASUS OptiMem: Un attento instradamento delle tracce e delle vias per preservare l’integrità del segnale per una migliore stabilità della memoria
  • Connettività ultraveloce: M.2, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A
  • CPU
    Intel® Socket 1200 for 10th Gen Intel® Core, Pentium® Gold and Celeron® Processors *
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    * Refer to www.asus.com for CPU support list
    **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
  • Chipset
    Intel® H410
  • Memoria
    2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    OptiMem
    * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Grafica
    Integrated Graphics Processor *
    1 x D-Sub
    1 x HDMI 1.4b
    *Graphics specifications may vary between CPU types.
  • Slot di Espansione
    Intel® 10th Gen Processors
    1 x PCIe 3.0 x16 (x16 mode)
    Intel® H410 Chipset
    2 x PCIe 3.0 x1
  • Storage
    Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports
    Intel® H410 Chipset :
    1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)*1
    4 x SATA 6Gb/s port(s)
  • LAN
    Realtek® RTL8111H
  • Audio
    Realtek ALC887 7.1-Channel High Definition Audio CODEC *2
    – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
    Audio Feature :
    – LED-illuminated design
    – Audio Shielding
    – Dedicated audio PCB layers
    – Premium Japanese audio capacitors
  • Porte USB
    Rear USB Port ( Total 6 )
    2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
    4 x USB 2.0 port(s)(2 x Type-A)
    Front USB Port ( Total 4 )
    2 x USB 3.2 Gen 1 port(s)
    2 x USB 2.0 port(s)
  • Software Features
    ASUS Exclusive Software
    Armoury Crate
    AI Suite 3
    – Performance And Power Saving Utility
    TurboV EVO
    EPU
    Digi+ VRM
    Fan Xpert
    – EZ update
    ASUS CPU-Z
    AI Charger
    DAEMON Tools
    Norton Anti-virus software (Free Trial for 60 days)
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode
  • ASUS Special Features
    ASUS 5X PROTECTION III
    – ASUS DIGI+ VRM
    – ASUS LANGuard
    – ASUS Overvoltage Protection
    – ASUS SafeSlot Core
    – ASUS Stainless-Steel Back I/O
    ASUS Q-Design
    – ASUS Q-DIMM
    – ASUS Q-Slot
    ASUS Thermal Solution
    – Aluminum heatsink design
  • Porte I/O Posteriori
    1 x PS/2 keyboard/mouse combo port(s)
    1 x D-Sub
    1 x HDMI
    1 x LAN (RJ45) port(s)
    2 x USB 3.2 Gen 1 Type-A
    4 x USB 2.0
    1 x COM port(s)
    3 x Audio jack(s)
  • I/O Interne
    1 x CPU Fan connector(s)
    1 x Chassis Fan connector(s)
    1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
    1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
    1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
    1 x LPT header
    4 x SATA 6Gb/s connector(s)
    1 x S/PDIF out header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin EATX 12V Power connectors
    1 x Front panel audio connector(s) (AAFP)
    1 x Clear CMOS jumper(s)
    1 x System panel connector
    1 x Speaker connector
  • Accessori
    I/O Shield
    2 x SATA 6Gb/s cable(s)
    1 x M.2 Anchor
    1 x Supporting DVD
    User manual
  • BIOS
    128 Mb Flash ROM, UEFI AMI BIOS
  • Gestibilità
    WOL by PME, PXE
  • Sistema Operativo
    Windows® 10 64-bit
  • Dimensioni Scheda
    mATX Form Factor
    8.9 inch x 7.9 inch ( 22.6 cm x 20.1 cm )
  • Note
    *1 When a device in SATA mode is installed on the M.2 socket, SATA6G_2 port cannot be used.
    *2 A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output.
