MasterWatt Lite is built with AFC+PWM technology which enhances product reliability and performance.
ErP2013 and new CE energy saving can lower the cost off your electronic bill.
It’s an ideal for basic computing systems.
80 Plus White EU (230V):
Certified 85% efficiency typically.
Active PFC + PWM combined with dual forward topology:
Increasing the Power Supply’s stability and performance.
Green Power: Design to meet ErP2013 Lot6 & new CE energy saving regulation.
Silent 120mm HDB fan with intelligent fan-speed control to enhance longevity and help reduce noise.
OCP/OVP/SCP/OPP with build-in Over Temperature Protection (OTP).

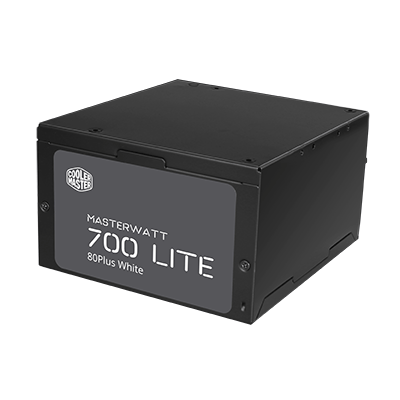

Master Watt Lite 230V
ATX 12V V2.31
150mm x 140mm x 86mm
Silent 120mm HDB fan
Power Good Signal
Hold Up Time
>10ms at 100% full load @230Vac
OCP / OVP / OPP / OTP / SCP
TUV, CE, BSMI, FCC, cTUV-Rhus, KC, CCC, EAC, RCM
M/B 20+4 Pin x 1
CPU 4+4 Pin x 1
SATA x 6
Peripheral 4 Pin x 3
FDD Cable 4 pin x 1
PCI-e 6+2 Pin x 4
