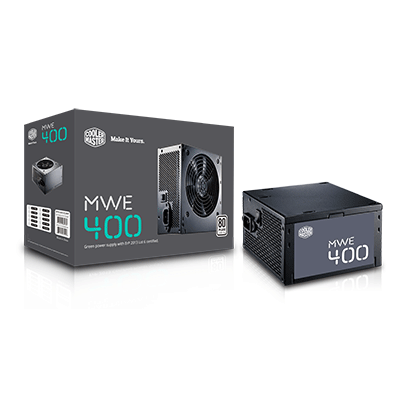

ALIMENTATORE ATX 400W CoolerMaster MWE400 MPW-4002-ACABW-EB 400Watt 80+EU 200-260Va Fan120mm Cavo EU Brown Box

SKU: MPW-4002-ACABW-EB

The MWE delivers everything you expect from top tier power supply at a budget price. This unit also comes with a circuit design that will protect your…

37,16

25 disponibili

Prezzo prodotto base:
Totale opzioni aggiuntive:
Ordine totale:
Compara

Descrizione

The MWE delivers everything you expect from top tier power supply at a budget price. This unit also comes with a circuit design that will protect your system at all times. The 120mm fan keeps your system cool with little noise. This tough little box is the perfect solution for all your power needs.

Features
High Efficiency and Low Noise – with Active Power Factor Correction design and forward topology. Meeting the 80 PLUS certification for 230V, the MWE will guarantee a typical efficiency of at least 85% during normal use.
ErP 2013 Lot 6 Compliant – The MWE is designed to the latest envirmental regulations and standards, meeting the ErP 2013 mandates. The MWE consumes less then 0.5 Watt when your system is in standby mode, which not only reduces strain on the environment but also your energy bill
Proven Thermal Resistance – The MWE is engineered to operate normally at up to 40°C, providing added confidence to security and reliability to systems operating in warmer environments.
Quiet and Durable – The thermally controlled 120mm HDB fan operates smoothly without friction. Enjoy your system with a durable fan in a quiet environment.
Damage Resistant – The MWE provides you full standard protection (OCP/OVP/UVP/SCP/OPP) plus built-in Over Temperature Protection (OTP). These extra security measures minimize the risk of damage to your system from power outages.

Specifications
Model
MPW-4002-ACABW

Type
Intel Form Factor ATX 12V V2.31

PFC
Active PFC (>0.9 typical)

Operation Voltage
230V

Input Voltage
200 -260 Vac

Input Current
3A

Input Frequency
47 – 63Hz

Dimensions (L x B x H)
150 x 150 x 86mm

Fan size
120mm

Fan Bearing
HDB

Fan Speed
751 – 1675 RPM

Powergood Signal
100-500ms

Hold Up Time
>14ms

Efficiency
85% @ Typical Load

ErP 2013 Lot 6
Yes

MTBF
>100,000 Hours

Operating Temperature
40°C

Protections
OVP / OPP / OTP / SCP

Regulatory
CE,TUV, EAC, RCM, CCC

Connectors
MB 20+4 pin x 1
CPU 12V 4+4Pin x 1
SATA x 6
Peripheral 4 Pin x 3
FDD Cable 4 Pin x 1
PCI-e 6+2 Pin x 1

AC INPUT
200 -260 Vac~ 3A 47 – 63Hz

DC OUTPUT
+3.3V +5V +12V -12V +5sb
17A 16A 30A 0.3A 2.5A

TOTAL POWER
3.3V +5V +12V -12V +5sb
56W 80W 360W 3.6W 12.5W
Total: 400W

Net Weight
1.14 kg

Gross Weight
1.37 kg

Package Dimensions
266 x 194 x 112 mm

Carton Dimensions
582 x 279 x 217 mm

Unit / Carton
5 pcs
