Descrizione
****** ATTENZIONE: QUESTA MAINBOARD PUO’ ALLOGGIARE SOLO CPU INTEL DI GENERAZIONE 8 Coffee Lake *********
Model Name:

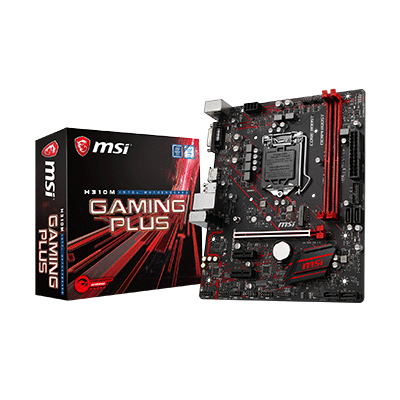

H310M GAMING PLUS
CPU Support:
Support 8th gen Intel Core / Pentium Gold / Celeron Processor
CPU Socket
LGA 1151
Chipset:
Intel H310 Chipset
Display Interface:
HDMI + DVI-D – Requires Processor graphics
Memory Support:
2 DIMMs, Dual Channel DDR4 up to 2666Mhz – Max 32Gb
Expansion Slots:
1x PCI-E 3.0 x16 slot
2x PCI-E x1 slots
Storage:
4x SATA 6Gb/s ports
1xM.2 Slot – NVMe Support, up to 20Gb/S using PCIe Gen2x4
USB Ports
4x USB 3.1 (gen1) (2 Rear + 2 Int.) + 6 x USB 2.0 (4 Rear + 2 Int.)
LAN
Realtek I219-V Gigabit LAN
Audio
8-Channel (7.1) HD Audio with Audio Boost
I/O Ports:
1x PS/2 Combo Port
1x HDMI Port
1x DVI-D Port
2x USB 3.1 Gen1
4x USB 2.0 Port
1x Lan Port
3x Audio connectors
Form factor:
Micro-ATX
