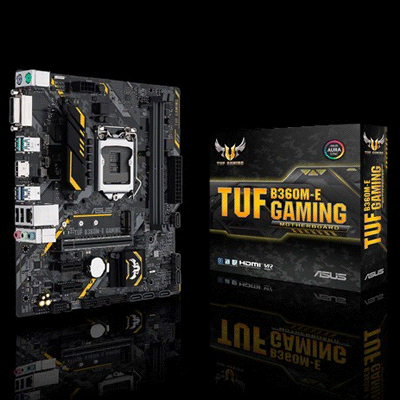

MB ASUS TUF B360M-E GAMING B360 1151 2xDDR4-2666 VGA DVI-D HDMI 1xPCIe3.0x16 6xSATA3 M.2 GBLAN USB3.1 AURA mATX 90MB0WK0-M0EAY0

SKU: 90MB0WK0-M0EAY0

CPU
Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Support…

87,54

67 disponibili

Prezzo prodotto base:
Totale opzioni aggiuntive:
Ordine totale:
Compara

Descrizione

CPU
Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

Chipset
Intel® B360

Memory
Intel® B360 Chipset
2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.

Graphic
Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI-D ports
– Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
– Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Expansion Slots
Intel® B360 Chipset
1 x PCIe 3.0/2.0 x16 (x16 mode)
2 x PCIe 3.0/2.0 x1

Storage
Intel® B360 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
6 x SATA 6Gb/s port(s),
Intel® Optane™ Memory Ready

LAN
Intel® I219V, 1 x Gigabit LAN Controller(s)
TUF LANGuard

Audio
Realtek® ALC887 7.1-Channel High Definition Audio CODEC *2
Audio Feature :
– Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
– Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
– Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

USB Ports
Intel® B360 Chipset :
2 x USB 3.1 Gen 2 up to 10Gbps port(s) (2 at back panel, teal blue, Type-A)
Intel® B360 Chipset :
4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board)
Intel® B360 Chipset :
6 x USB 2.0/1.1 port(s) (2 at back panel, black, Type-A, 4 at mid-board)

Special Features
ASUS TUF PROTECTION
– ASUS SafeSlot: Protect your graphics card Investment
– ASUS ESD Guard: Enhanced ESD protection
– ASUS Overvoltage Protection: World-class circuit-protecting power design
– ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
– ASUS DIGI+ VRM: 5 Phase digital power design
ASUS OptiMem:
– Optimem (Improved DDR4 stability)
ASUS EPU :
– EPU
ASUS Exclusive Features :
– AI Suite 3
– Ai Charger
– ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
– EZ XMP ASUS Exclusive Features
– PC Cleaner
– File Transfer
ASUS Quiet Thermal Solution :
– ASUS Fan Xpert
ASUS EZ DIY :
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS MyLogo 2
– ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
– ASUS Q-Slot
– ASUS Q-DIMM
AURA: RGB Lighting Control
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
Operating System Support
Windows® 10 64-bit

Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 (teal blue)
2 x USB 3.1 Gen 1 (blue) ,
2 x USB 2.0
3 x Audio jack(s)

Internal I/O Ports
1 x RGB Header(s)
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x Speaker connector

Accessories
User’s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x TUF Gaming Sticker
1 x TUF Certification card(s)

BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information, F4 AURA ON/OFF, F9 Search

Manageability
WOL by PME, PXE
Support Disc
Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)

Form Factor
Micro ATX Form Factor
8.9 inch x 8.2 inch ( 22.6 cm x 20.8 cm )

Note
*1.When a device in SATA mode is installed on the M.2 socket, SATA_2 port cannot be used.
*2. Use a chassis with HD audio module in the front panel to support a 8-channel audio output.
